SINGLE STOREY DETACHED FACTORY WITH 2 STOREY OFFICE

TYPE W
SINGLE STOREY DETACHED FACTORY WITH 2 STOREY OFFICE

(1.5 acres) [SOLD OUT]

LAND AREA
Approx. 67,301.91 - 69,770.10 sq.ft.
GROSS FLOOR AREA
Approx. 47,436.73 sq.ft.

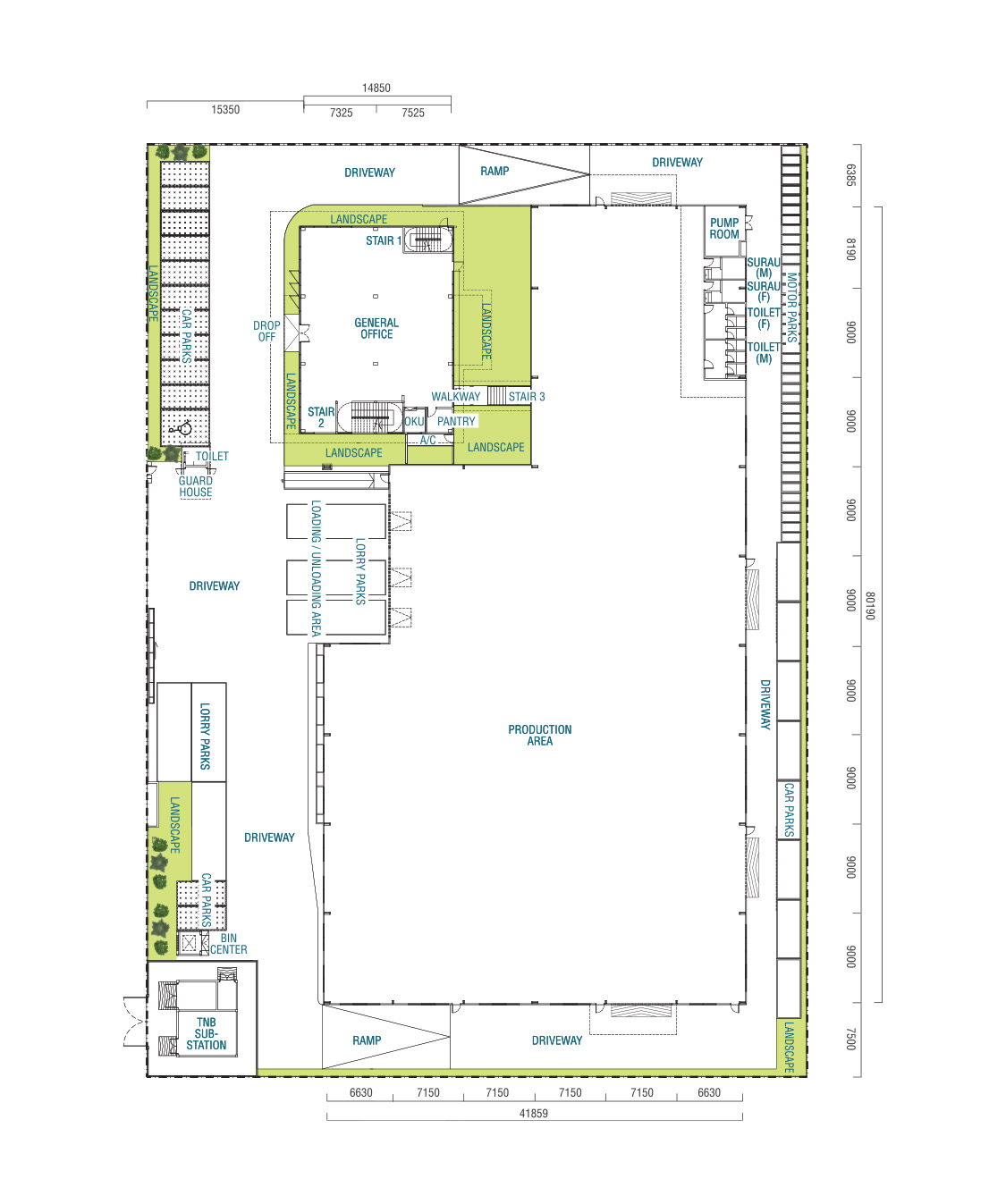

GROUND FLOOR

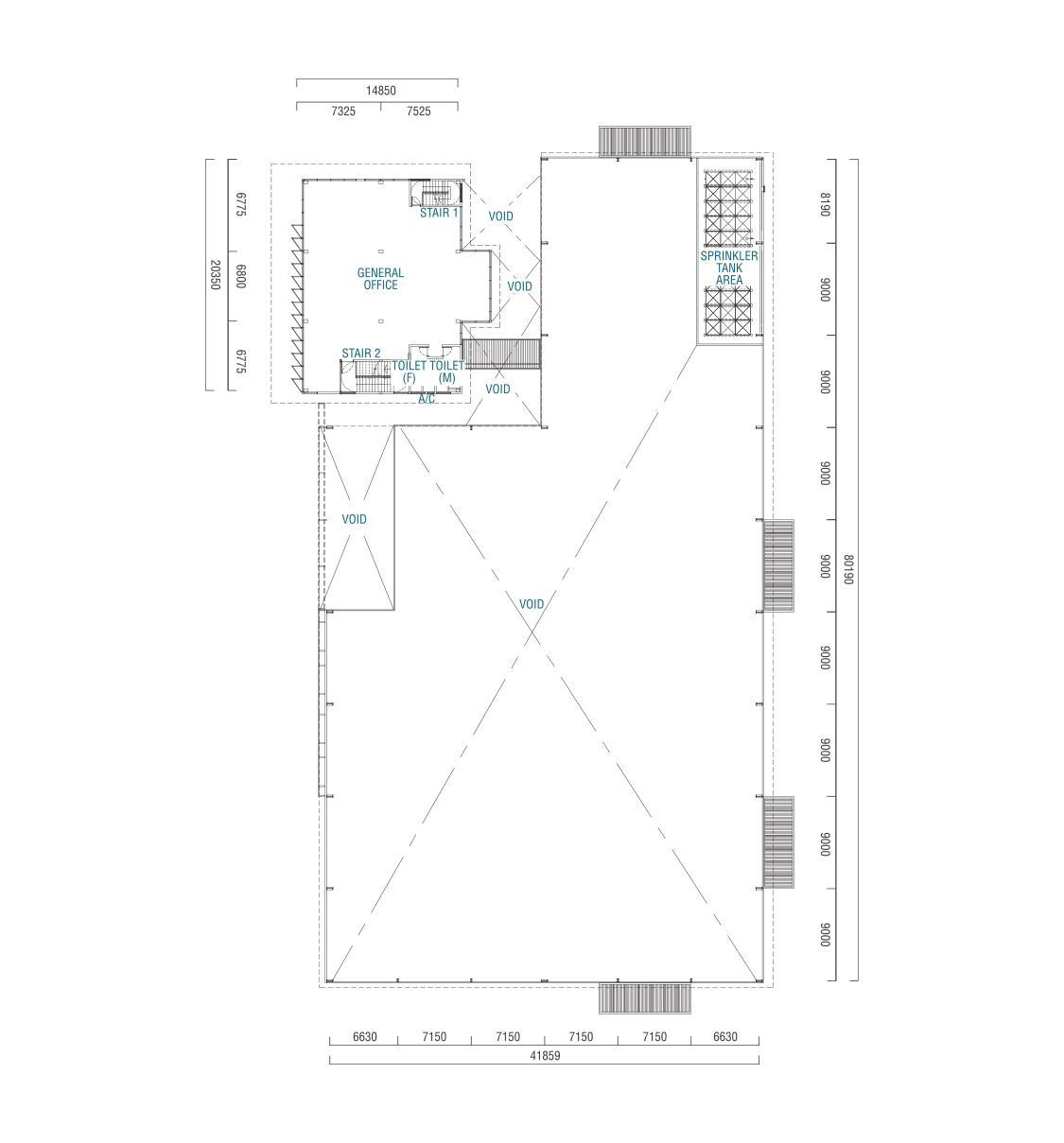

FIRST FLOOR

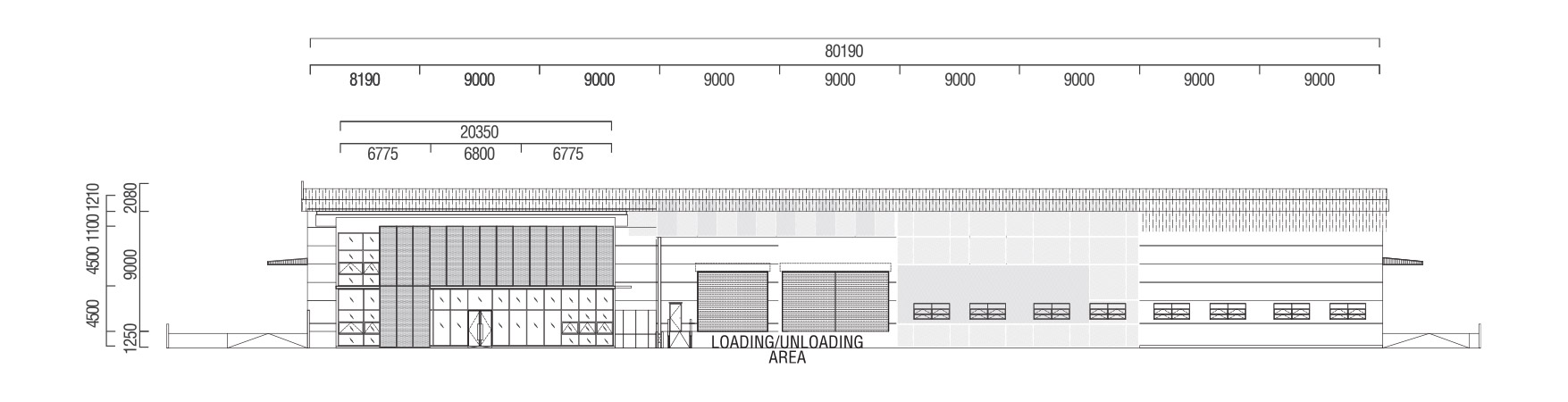

FRONT ELEVATION

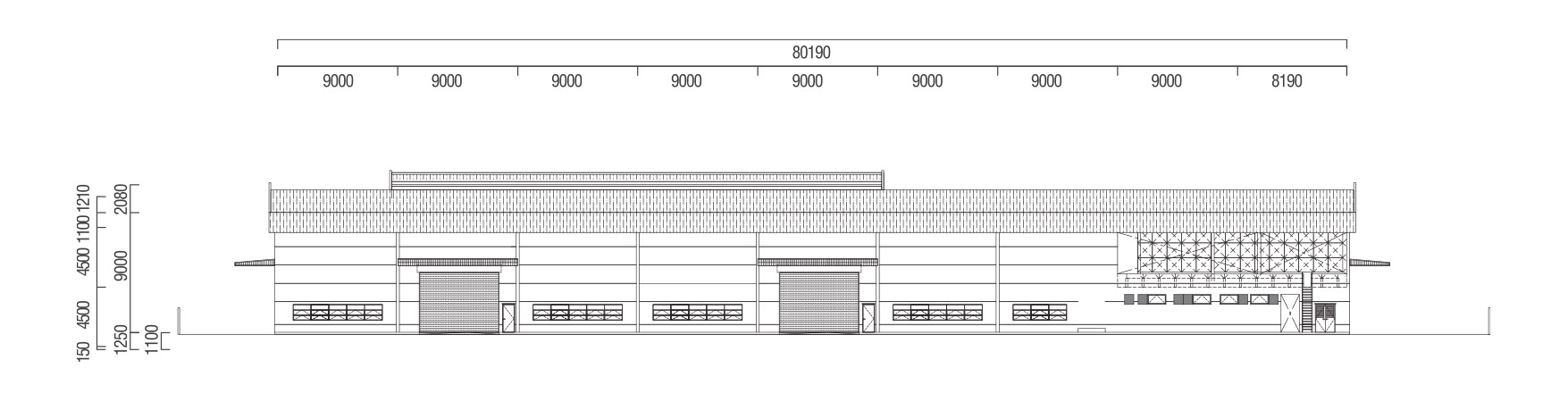

REAR ELEVATION

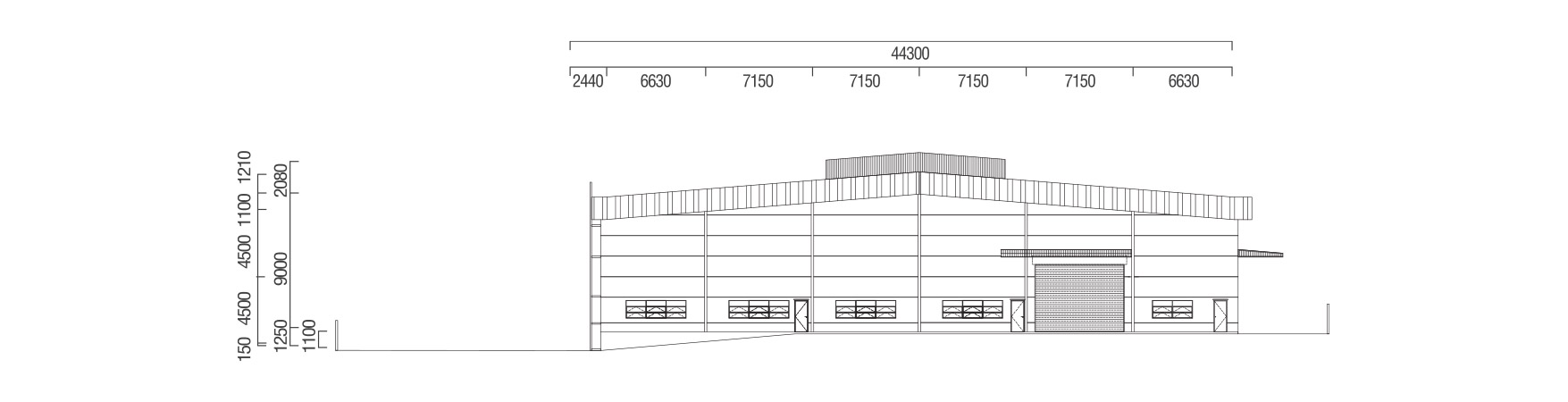

RIGHT ELEVATION

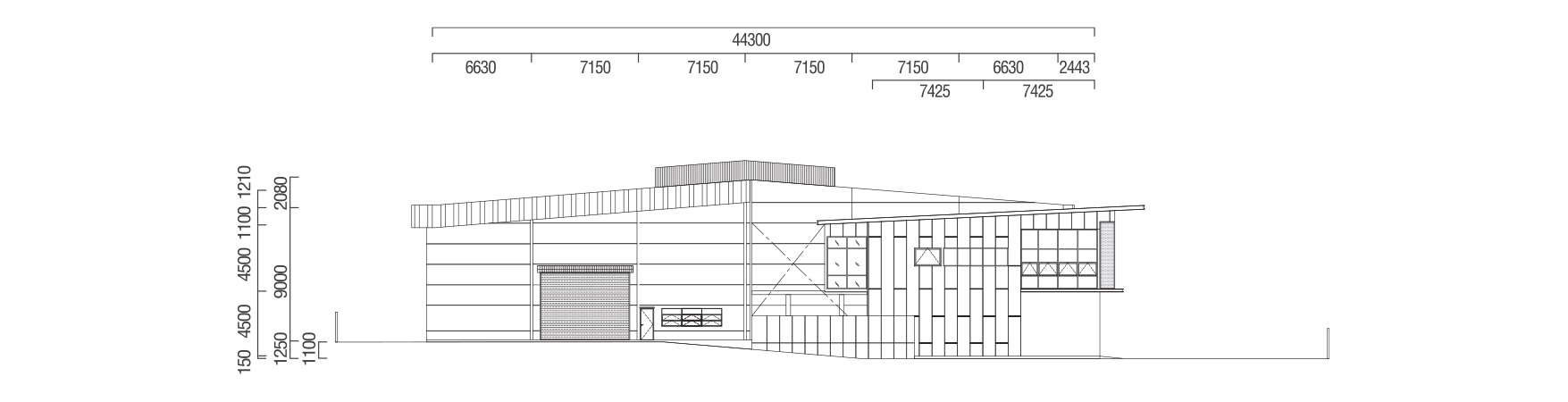

LEFT ELEVATION
Factory Height
:
9 m
Floor Design Loads
Production Area (Ground Floor)
:
20kN/m², Non-Suspended Floor Slab
Office Area (Mezzanine Floor)
:
2.5kN/m²
Roof Design Loads
Production Area Roof
:
Imposed dead load = 0.25kN/m² (Load of Rafter, Purlin, Metal Roofing Sheet, Insulation, Lighting Fitting, Sprinkler Pipe & Gypsum Board Ceiling with Aluminium Tee Frame)
Live load= 0.25kN/m²
Roof Systems
Roof Structure
:
Structural Steel Designed to BS 5950 Standard
Roof Sheets
:
Metal Roof or Equivalent c/w 50mm Thick Fiberglass Insulation
Gutter
:
Stainless Steel Gutter
Walls
Internal Wall (Office and Sprinkler Tank Area)
:
115mm Thick Common Brick Wall with Plaster and Painted with Emulsion Paint.
:
Ceramic Wall Tiles to Toilets (2.1m High)
External Wall (Office Area)
:
115mm Thick Common Brick Wall with Plaster and Painted with Weather Bond Paint.
External Wall (Production Area)
:
Brick Wall and/or Precast Wall and Painted with Weather Bond Paint
Floors
Ground Floor
:
G30 Concrete with a Layer of Polythene Sheet and BRC Mesh
Production Finishes
:
4kg/m² Floor Harderner Finishes
Office & Lobby Finishes
:
Cement Render
Lobby Staircase Finishes
:
Cement Render
Toilet Floor Finishes
:
Matt Surface Ceramic Tiles
Doors
External Doors
:
Motorized Roller Shutters and Mild Steel Doors (Production Area)
:
Tempered Glass Door (Entrance Area)
Internal Doors
:
Fire-rated Door (Based on Local Authority Requirement) & Timber Flush Door (Office Area)
Windows
External Windows
:
Aluminium Casement Window (Production Area)
:
Reflective Glass Curtain Wall (Office Area)
:
Aluminium Framed Top Hung Windows (Office Area)
Ceiling
Office Area
:
Gypsum Pin Hole False Ceiling (Office Area)
:
Gypsum Board Plaster Ceiling (Lobby Area)
Production Area
:
Exposed Steel Structure (No Ceiling)
Infrastructure Works
External Road
:
Reinforced Concrete Road c/w road marking
Fencing
:
Front Signage : Common Brick Wall with c/w Plaster Cement and Painted with Weatherbond Paint
:
Perimeter : 150mm High Kerb with 1.8m High BSP Fencing
Gate
:
Sliding Gate Without Motor
:
Power Point for Motor Provided
Drainage System
:
Concealed Pipe Culvert Drain
Sewerage System
:
Vitrified Clay Pipe (VCP) Connect to Main Sewerage Line
Bin Center
:
1 no.
Guardhouse
:
1 no.
Sprinkler Tank & Plinth
:
1 no.
TNB Sub-station
:
Subject to Appropriate Authority Requirement
Dock Leveller
:
Subject to Design
Standard Mechanical & Electrical Specification
MSB 1000A (Setting 600A)
:
1 no.
DB 150A
:
1 no.
DB 60A
:
2 nos.
DB 30A
:
1 no.
Lighting Point
:
Yes
13A S/S/O
:
Yes
Air-Cond Power Point
:
Yes
Emergency Light
:
Subject to Appropriate Authority Requirement
Keluar' Sign
:
Subject to Appropriate Authority Requirement
Telephone MDP
:
Yes
Data Point
:
Yes
20A Isolator Point
:
Yes
30A Isolator Point
:
Yes
Fire Protection Systems
Fire Alarm System
:
Yes
Hosereel System
:
Yes
Automatic Sprinkler System (Ordinary Hazard)
:
Yes
Portable Fire Extinguisher
:
Yes
Hydrant System
:
Yes
Plumbing & Water Recticulation Systems
Water Tank for Toilet only
:
Yes
Incoming Domestic Piping & Discharged Piping
:
Yes
